Floors for repair shops


Fortelock is a perfect floor for car repair shops, tyre repair shops and other repair shops as well as car showrooms. Fortelock endures the loads of cars, motorcycles as well as trucks, fire engines and hand jacks, stands etc.


Furthermore, thanks to its toughness and simultaneous flexibility, it proactively lowers the load on joints during prolonged standing and it creates heat and sound insulation.


Thanks to the variability of load rates, colour combinations and patterns, Fortelock creates beautiful floors, which are easily maintained and which endure much longer than common concrete or ceramic tiles.


Which tile type should be used?

With respect to differences in garages, it is necessary to try the most suitable type. If used for passenger cars, you can use Fortelock 2050/2060/2080 tiles for a medium load rate.

The use of Fortelock 2010/2020/2040 tiles for a high load rate are recommended if heavy trucks move around the floor or if the floor is expected to be exposed to a highly concentrated (point) load.









Patterns



There are three patterns to choose from:

Leather



Diamond

Cointop






 Medium load:

Bottom side



2050 - diamond
2060 - leather
2080 - cointop



Suitable for use in areas where there are not heavy machinery or high loads.



No

2050

2060

2080

Product type

Floor tiles

Pattern

Diamond

Leather

Coin

Dimensions

510 x 510 x 7 mm

Weight

1,4 kg




  High loads





Bottom side



2010 - diamond
2020 - leather
2040 - cointop



Meant for areas where heavy machinery and high loads are used.



No

2010

2020

2040

Product type

Floor tiles

Pattern

Diamond

Leather

Coin

Dimensions

510 x 510 x 7 mm

Weight

2,2 kg




Ramps



The ramp is intended to simplify entering onto a Fortlock floor by car. Both inner and outer corners can be created from it by simple flanging.

2015 - diamond
2025 - leather
2045 - cointop



No

2015

2025

2045

Product type

Ramps

Pattern

Diamond

Leather

Coin

Dimensions

510 x 140 x 7 mm

Weight

0,5 kg




Colours

All products are available in following colours:



Black

Graphite

Gray

Red













Blue

Green

Yellow

Orange











Rosso red

Electric blue

Light green

Light blue















Purple










































High load rate tile ECO - endurance with a low price

These tiles are full on their bottom sides and they are used in rooms with highly concentrated or dynamic load rates. Generally, they are facilities where heavy handling devices (above all fork-lift stackers or electrical pallet trucks) are used.

The purpose of an ECO tile is to offer a good quality tile with a low price without making a compromise on durability and load rate.

ECO Series is manufactured from recycled material, which makes ECO tiles an environment friendly products, while maintaining product strength properties.

You can choose between two patterned - groove and leather imitation.

Recycled material makes te look of a tile a little mottled and dim. There might be also evidence from molding the material.

Since the raw material is not always homogenic, there might me bigger color difference between and per batches.



No

2010

2020

2040

Product type

ECO tiles

Pattern

Diamond

Leather

Coin

Dimensions

510 x 510 x 7 mm

Weight

2,2 kg

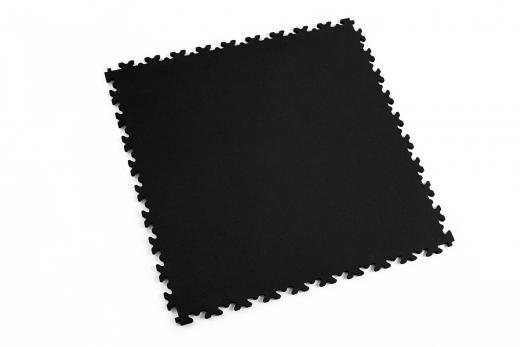

ECO black

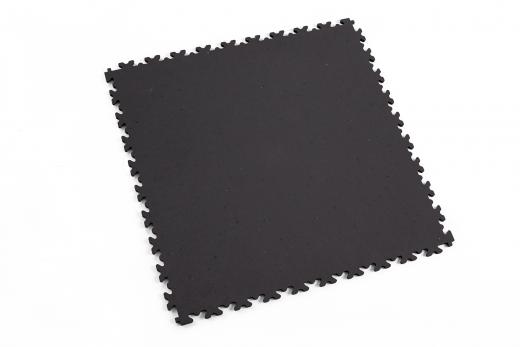

ECO gray












 Comparison of ways to repair floors

 FortelockCeramic tilesCement overcoatCoatingResin gravels
Price of the materialhighermediummediumlowhigher
Price of layingvery lowmediummediummediumhigh
Resistance to wear and tearhighmediummediumlowhigh
Tolerance to subfloor moisturehighmediumhighlowvery low
Installation within hoursyesnonopartlyno
Downtime of the room, incl. preparation of subfloorzeromediumhighmediumhigh
Installation by means of a rubber mallet and knifeyesnononono
Impact resistanttotallylittlemediumlittlemedium
Easy local repairyespartlynonono
Dependency on subfloor and necessity of preparationsminimalhighhighhighhigh
Fatigue-resistant and insulating surfaceyesnononopartly
Possibility of easy replacement or transferringyesnononono
